AKG HC26-0-BR25

Rugged Bar and Plate Construction Oil Coolers

Oil Cooler

MODEL NUMBER

	AKG Part Number: HC26-0-BR25
	Model Description: HC26
	Motor Size: cu-in.
	Bypass: 25 PSI
	Max Motor Pressure: PSI

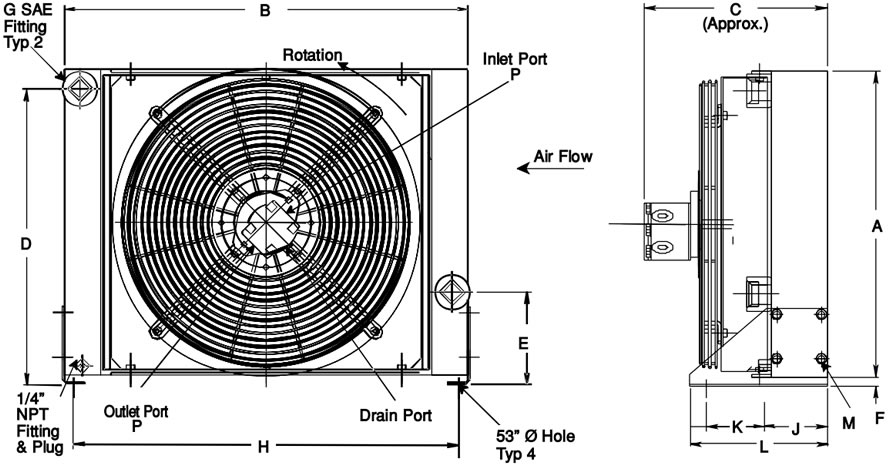

Dimensions:

	Height: 16.72 Inches
	Width: 20.15 Inches
	Depth: 11 Inches
	Weight: 67 PSI

Ratings:

	Cooler Maximum Working Pressure: 250 PSI
	Cooler Maximum Working Temperature: 250 F

Features:

	Aluminum Cooler Construction
	Polypropylene Fan Blades
	Powder Painted Steel Mounting Brackets
	Zinc Plated Steel Fan Guard
	Powder Painted Steel Shroud

To order an AKG oil cooler HC26-0-BR25,
please contact us: 1-888-226-8522

HC26-0-BR25 is a Low Fouling, Non-Louvered Air Fin Hydraulic Motor Driven Oil Cooler with Dependable Long Life Fans. Fan Motors may be Operated at varied Oil Flows to reduce noise levels or Simplify Installation.

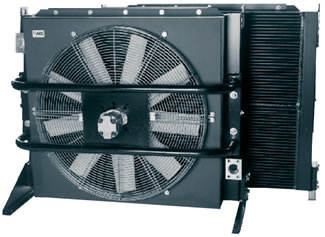

Note: Picture is an image of a stock unit and may not accurately represent the exact unit shown on this page.

AKG Industrial HC Series

Quotes, Engineering & Ordering Information: AKG Coolers, please contact us: 1-805-484-2992
